      In this explanation, we will understand the concept of parallel lines and their different properties.

      Parallel lines definition

      Parallel lines are the types of lines that consists of two or more lines in the same plane.

      Two or more straight lines in the same plane which are equidistant (having the same distance between them at all points) and never intersect each other at any point are called parallel lines.

      Parallel lines remain at the same distance from each other, no matter how far they are extended. They can be constructed in any direction whether horizontal, vertical, or diagonal. Mathematically, they are represented with the symbol which is called “ is parallel to”.

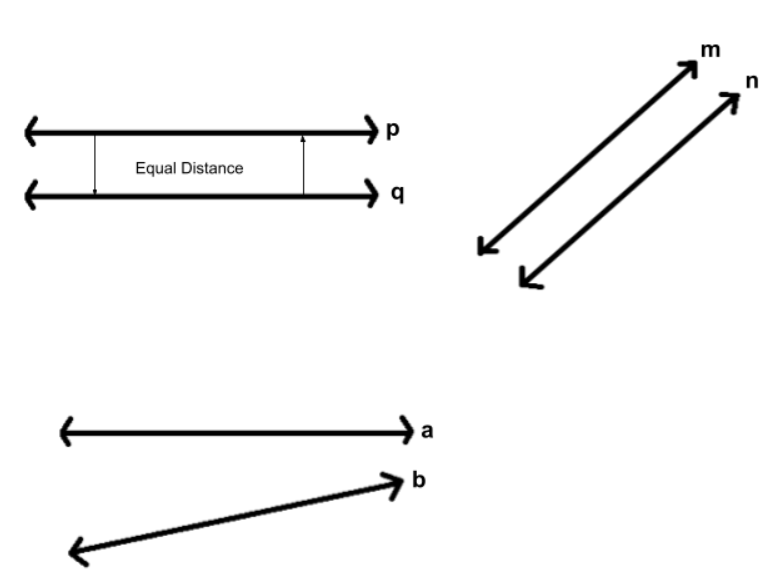

      Parallel lines, parallel lines examples, StudySmarterParallel lines, StudySmarter Originals

      Here in the above figure p and q are parallel lines and m and n are parallel lines. Hence it is said thatpqandmn.But line a and line b are not parallel to each other as when extending both the lines, they both will intersect each other at some point. So a is not parallel to b (that isab).

      Parallel lines angles

      As parallel lines do not intersect with each other, no angles can be formed between them. But when another line apart from the given parallel lines intersect both the parallel lines then some angles are formed between them.

      When any line cuts both the parallel lines at some point in the same plane, then this line is known as transversal.

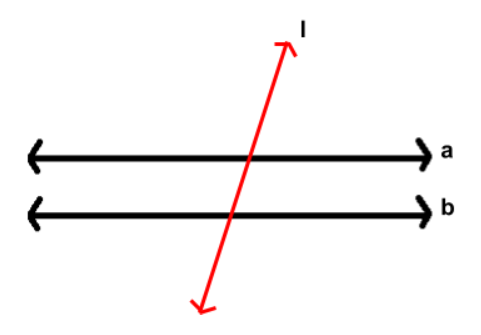

      Parallel lines, transversal, StudySmarterTransversal cutting parallel lines, StudySmarter Originals

      Here in the above figure, we can see that line l cuts both the parallel lines a and b. So line l is the transversal line. As the transversal cuts parallel lines it can be seen that the transversal forms pairs of angles with both the lines. There are different types of angles created by transversals.

      Corresponding angles

      The angles which are formed on the same side of the transversal and on the matching corners of parallel lines are called corresponding angles.

      Corresponding angles can be easily identified in the form of an “F” shape. They can be formed anyway either upside down or back and front. Corresponding angles are always equal to each other in parallel lines.

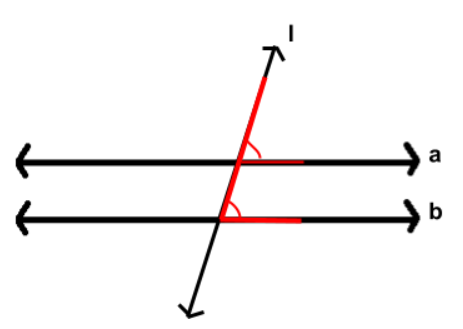

      Parallel lines, corresponding angles, StudySmarterCorresponding angles of parallel lines, StudySmarter Originals

      Alternate angles

      Angles formed on the opposite side of transversal on parallel lines are known as alternate angles.

      Alternate angles can be found in the form of a “Z” shape. They can be both interior and exterior angles. Similarly, like corresponding angles, alternate angles can be formed in any direction. Pair of alternate angles are always equal to each other.

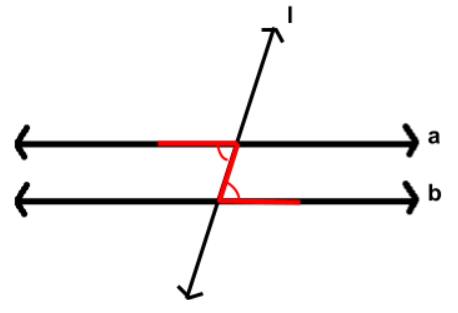

      Parallel lines, alternate angles, StudySmarterAlternate interior angles of parallel lines, StudySmarter Originals

      Here in the above figure, both the angles are alternate interior angles.

      Interior angles

      Angles formed on the same side of the transversal facing each other on parallel lines are called interior angles.

      Interior angles are formed in the shape of a “U”. They can be found on either side of the transversal containing both parallel lines. The sum of interior angles will always be 180°.

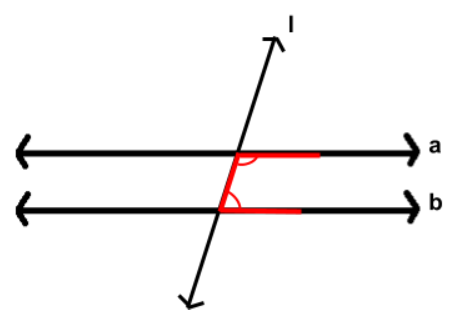

      Parallel lines, Interior angles, StudySmarterInterior angles of parallel lines, StudySmarter Originals

      Exterior angles

      Angles that are outside the sides of parallel lines but on the same of the transversal are called exterior angles.

      Exterior angles are formed in the shape of a “U” but will be located on the outside region of it. And the sum of the pairs of exterior angles will always be180°.

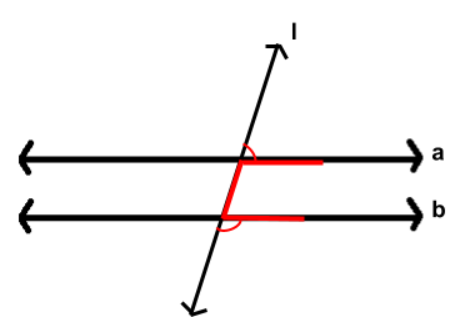

      Parallel lines, exterior angles, StudySmarterExterior angles, StudySmarter Originals

      Vertically Opposite angles

      Angles forming on any one of the parallel lines and transversals which are opposite to each other are called vertically opposite angles.

      Vertically opposite angles are found in the form of two “V” touching each other. They only contained any one of the parallel lines for each pair. Vertically opposite angles are equal to each other.

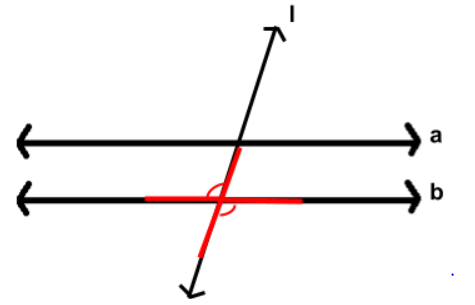

      Parallel lines, vertically opposite angles, StudySmarterVertically Opposite angles, StudySmarter Originals

      So we can represent all the pairs of angles for all the types of angles as below.

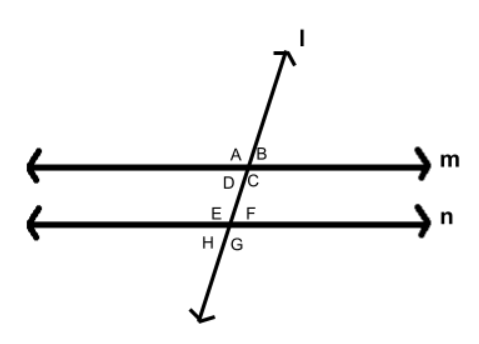

      Parallel lines, parallel lines angles, StudySmarterAll pairs of angles in parallel lines, StudySmarter Originals

      • Corresponding angle pairs :A&E ; B&F ; C&G ; D&H
      • Alternate angle pairs : C&E ; D&F
      • Interior angle pairs :C&F ; D&E
      • Exterior angle pairs : A&H ; B&G
      • Vertically opposite angle pairs : A&C ; B&D ; E&G ; F&H

      Parallel line equations

      Parallel lines are one type of line. So we can represent parallel lines in the form of an equation of the line. We know that in coordinate geometry, the equation of the line can be written in the form of y=mx+b. So we can also represent parallel lines in the form of the equation y=mx+b.

      Here b is the y-intercept, so it can be any value. It is important to remember that as we have two or more lines in parallel lines the value of b for every line should be different from each other. As if they are equal then the equations of all lines will be the same and then it can be considered as one single line.

      And m is the gradient or slope of that line. Here contrary to b the value of m for all the parallel lines should be equal. As m represents the slope of the line, if m is different for all parallel lines, then they will intersect each other and would not be considered parallel anymore.

      We will understand the concept of gradient and how it can be found soon in the following topic.

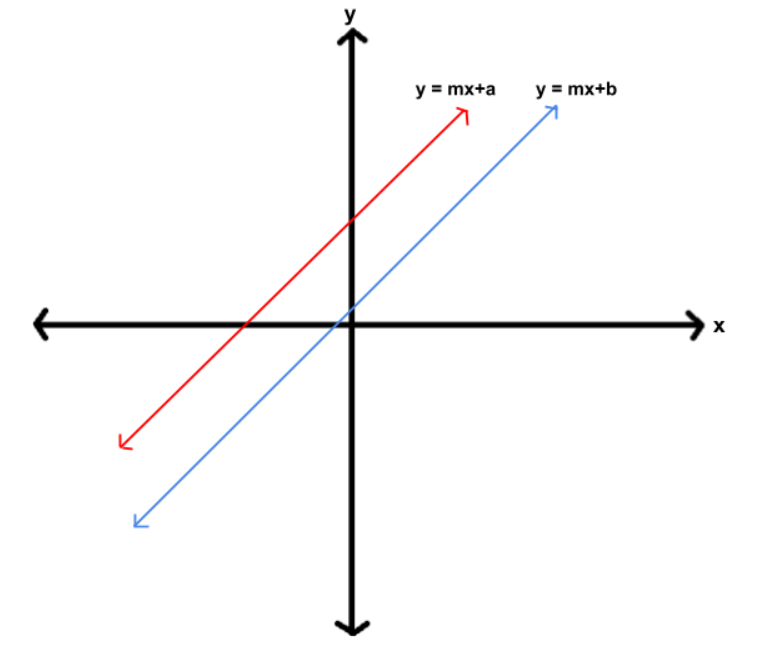

      Parallel lines, parallel lines equation, StudySmarterParallel lines equation in graph, StudySmarter Originals

      Parallel lines gradient

      The gradient or slope of parallel lines is the steepness of that line in the graph. The gradient of parallel lines is calculated with respect to the positive x-axis of the graph and parallel lines are inclined with the positive x-axis.

      We know from above that the equation for parallel lines is y=mx+b. Now suppose that the equation for one line y=m1x+b1and the equation for the other line is y=m2x+b2. Hereb1,b2 are y-intercept and m is the gradient of parallel lines. Then for both the lines to become parallel, the slope of both the lines should be equal. That is id="2715519" role="math" m1=m2. This equality can be derived by considering the angle between both the lines.

      If we are already given two points on each line of the graph then we can calculate and verify the slope using the formula:

      m=y2-y1x2-x1, wherex1,x2,y1,y2are the x-axis and y-axis points for the single line.

      Parallel lines examples

      Let us see some parallel line examples and understand how to find angles and the slope in parallel lines.

      In the given figure m and n are parallel lines and l is the transversal cutting both the parallel lines. Then find the value of x ifC=x+22, F=2x-13is given.

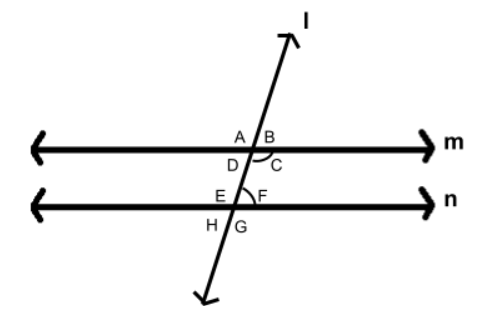

      Parallel lines theorem, parallel lines examples, StudySmarterParallel lines with transversal, StudySmarter Originals

      Solution:

      We are already given that lines m and n are parallel to each other and line l is transversal to m and n.

      So from the figure, we can clearly see thatC andF are interior angles as they form the shape "U".

      As both the angles are interior angles we know that their sum is equal to180°.

      C+F=180° (x+22)°+(2x-13)°=180° x°+2x°+22°-13°=180° 3x°+9°=180° 3x°=180°-9° 3x°=171° x=171°3° x=57°

      Find the value ofQ, Rfrom the given figure ifP=64°is given. Also line a, b, and c are parallel lines cut by the transversal t.

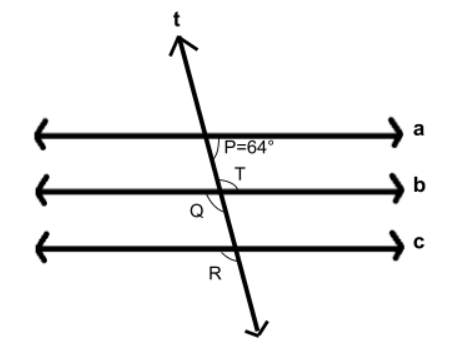

      Parallel lines, parallel lines examples, StudySmarterParallel lines with missing angles, StudySmarter Originals

      Solution:

      It is given that lines a,b and c are parallel to each other, and line t acts as a transversal to these three lines.

      First, we find the value ofQ. We can see in the figure thatPandT angles forms a "U" shape. So both the anglesP and T are interior angles. So the sum of both these angles will be180°.

      P+T=180° T=180°-P T=180°-64° T=116°

      NowQandTare vertically opposite angles. So both the angles will be equal to each other.

      T=QAs T=116°, Q=116°

      Now from the figure we can see thatQ andR forms a "F" shape, so they are corresponding angles. And hence they are equal to each other.

      Q=R R=116°

      Hence the value of both angles are Q=R=116°.

      Check whether the given lines are parallel lines or not.

      a) y=3x+7 b) y=2x-5 y=3x+4 y=5x-5

      Solution:

      a) Here we are given two equations of lines y=3x+7, y=3x+4. Now comparing them with the general equation of parallel linesy=mx+b,we get that m1=3, m2=3, b1=7, b2=4. Herem1, m2are the gradients of parallel lines andb1, b2are the y-intercepts.

      As we know that for lines to be parallel, the gradients should be equal. And we can clearly see in the above equations that m1=m2. Also note that the valuesb1, b2are different. Hence both the lines are parallel lines.

      b) Here the equations of lines are given as y=2x-5, y=5x-5.Comparing it with the general equation of parallel lines y=mx+b, we get that m1=2, m2=5, b1=-5, b2=-5.

      As here we get thatm1m2we can instantly say that both the given lines are not parallel to each other.

      Parallel Lines - Key takeaways

      • Two or more straight lines in the same plane which are equidistant (having the same distance between them at all points) and never intersect each other at any point are called parallel lines.
      • The angles which are formed on the same side of the transversal and on the matching corners of parallel lines are called corresponding angles.
      • Angles formed on the opposite side of transversal on parallel lines are known as alternate angles.
      • Angles formed on the same side of the transversal facing each other on parallel lines are called interior angles.
      • Angles that are outside the sides of parallel lines but on the same of the transversal are called exterior angles.
      • Angles forming on any one of the parallel lines and transversals which are opposite to each other are called vertically opposite angles.
      • The equation of the parallel line isy=mx+b,where the slope m of both the lines should be equal.
      Frequently Asked Questions about Parallel Lines

      What is the meaning of parallel lines?

      Two or more straight lines in the same plane which are equidistant (having the same distance between them at all points) and never intersect each other at any point are called parallel lines.

      What are the three rules of parallel lines?

      • Alternate angles should be equal
      • Corresponding angles should be equal
      • Vertically opposite angles should be equal.

      What are angles in parallel lines?

      Angles in parallel lines are alternate angles, corresponding angles, interior angles, exterior angles, and vertically opposite angles.

      What is an example of a parallel equation?

      Examples of parallel are railway tracks, opposite edges of doors and windows.

      How do you find the gradient of a parallel line?

      The gradient of parallel lines can be calculated using line equation y=mx+b for each line such that m1 = m2.
