      Pythagoras and Trigonometry Differences

      By now, you have probably already studied Pythagoras’ theorem. In this section, we will quickly recap what we mean by Pythagoras' theorem and establish the key differences between Pythagoras and Trigonometry.

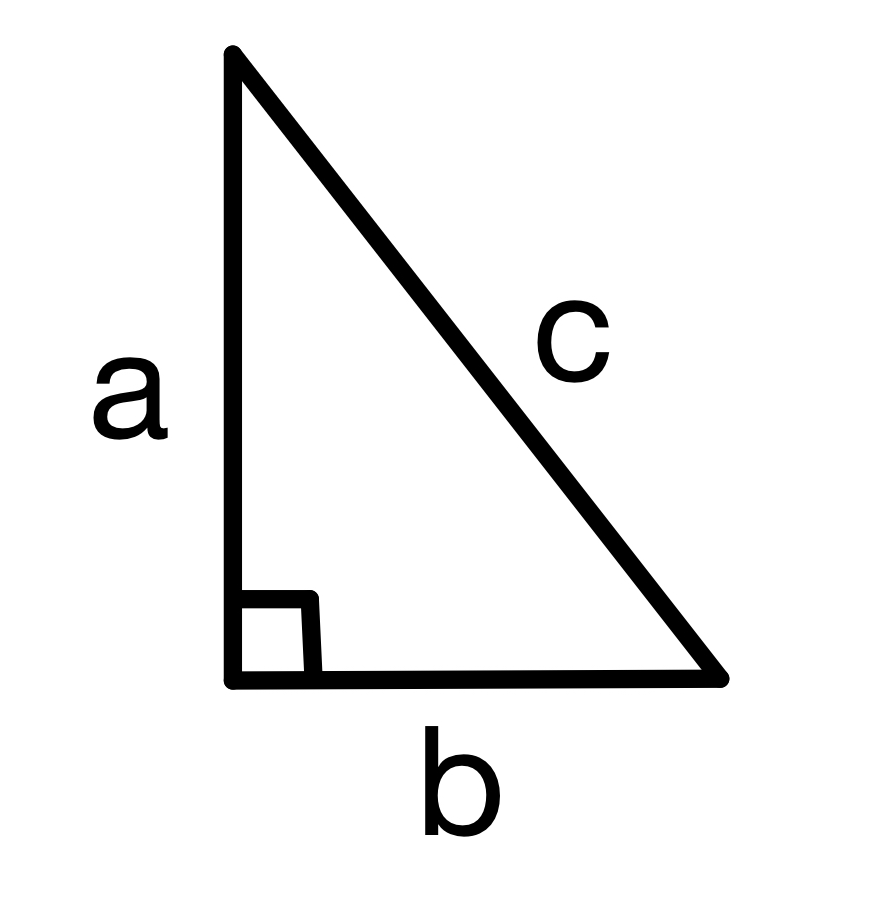

      Trigonometric Ratios, Triangle set up for Pythagoras' Theorem, Jordan MadgePythagoras- triangle set up for Pythagoras' theorem, Jordan Madge- StudySmarter Originals

      For any given right-angled triangle, the longest side of the triangle is called the hypotenuse. The hypotenuse is the side that appears slanted and is always the side opposite the right angle.

      Pythagoras' Theorem

      Pythagoras’ theorem states that for any given right-angled triangle, with hypotenuse, c, and the other two sides labelled a and b (as depicted in Figure 1), a2+b2=c2.

      Note: a and b in figure 1 are interchangeable, however, c must always be the hypotenuse.

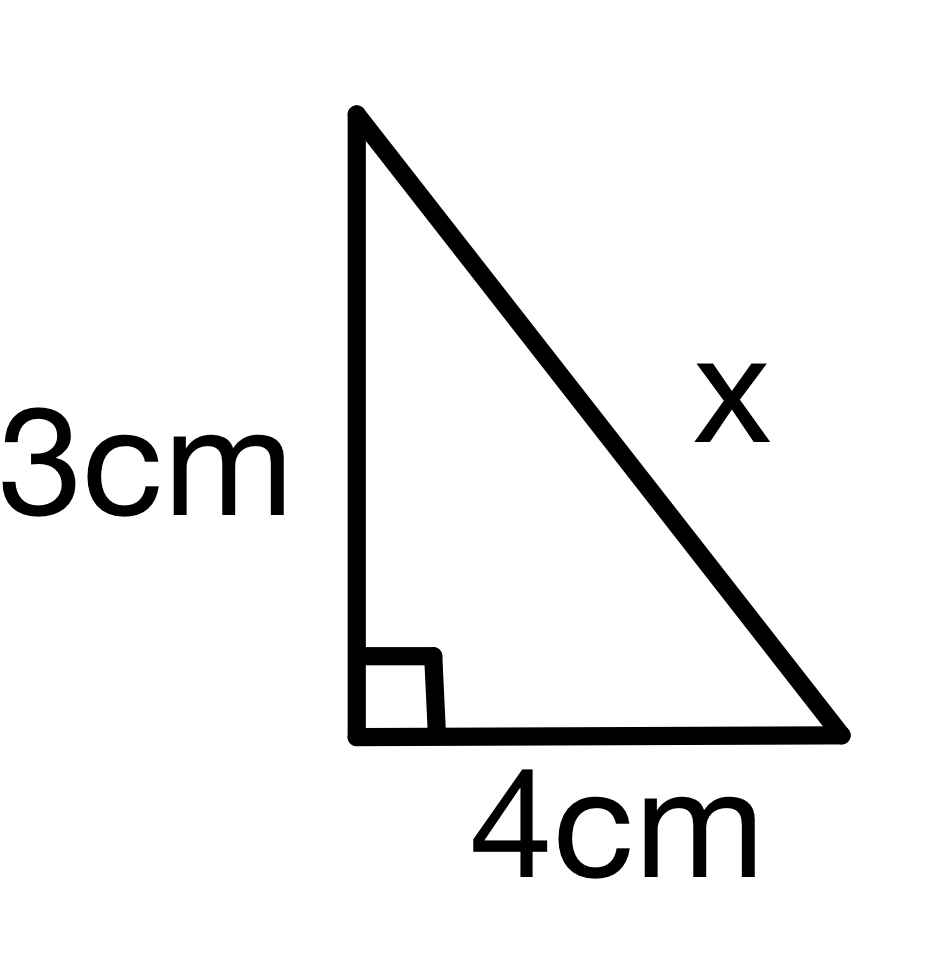

      Suppose we have the below triangle, find the side labelled x.

      Pythagoras' theorem, Example finding hypotenuse, Jordan MadgePythagoras- Example Finding Hypotenuse, Jordan Madge- StudySmarter Originals

      Solution:

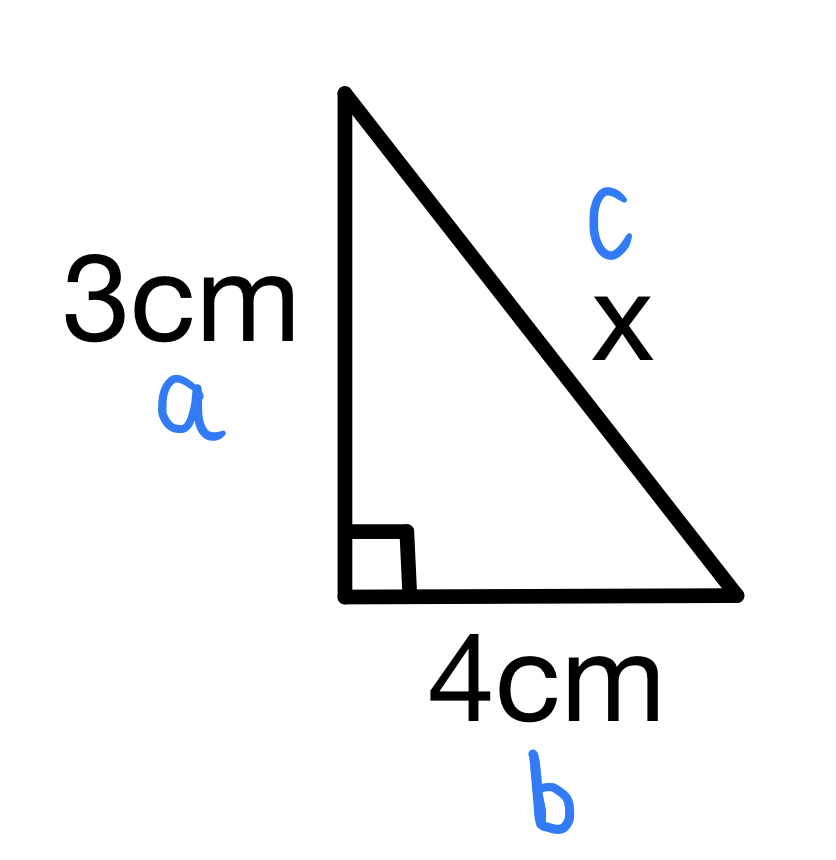

      First, let's label each of the sides a, b and c:

      Pythagoras- Example Finding Hypotenuse, Jordan Madge- StudySmarter Originals

      Now, Pythagoras' theorem states that a2+b2=c2.

      Substituting a=3, b=4, c=x into this, we obtain 9+16=x2, orx2=25.

      Therefore, to find x we simply take the square root both sides. Thus, x=5 cm.

      In the above example, we have what is known as a Pythagorean Triple. This is where each of the three sides of a right-angled triangle is an integer.

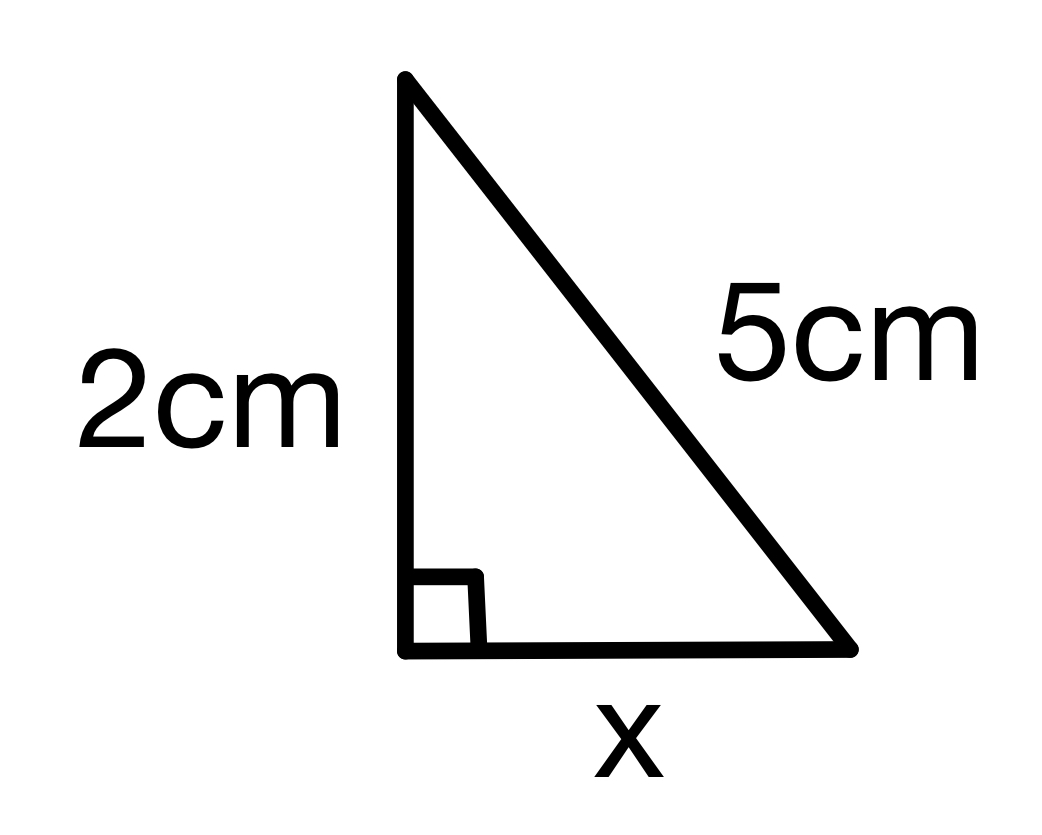

      Suppose we have the below triangle, find the side labelled x.

      Pythagoras' theorem, Example finding missing side, Jordan Madge

      Pythagoras- Example Finding Missing Side, Jordan Madge- StudySmarter Originals

      Solution:

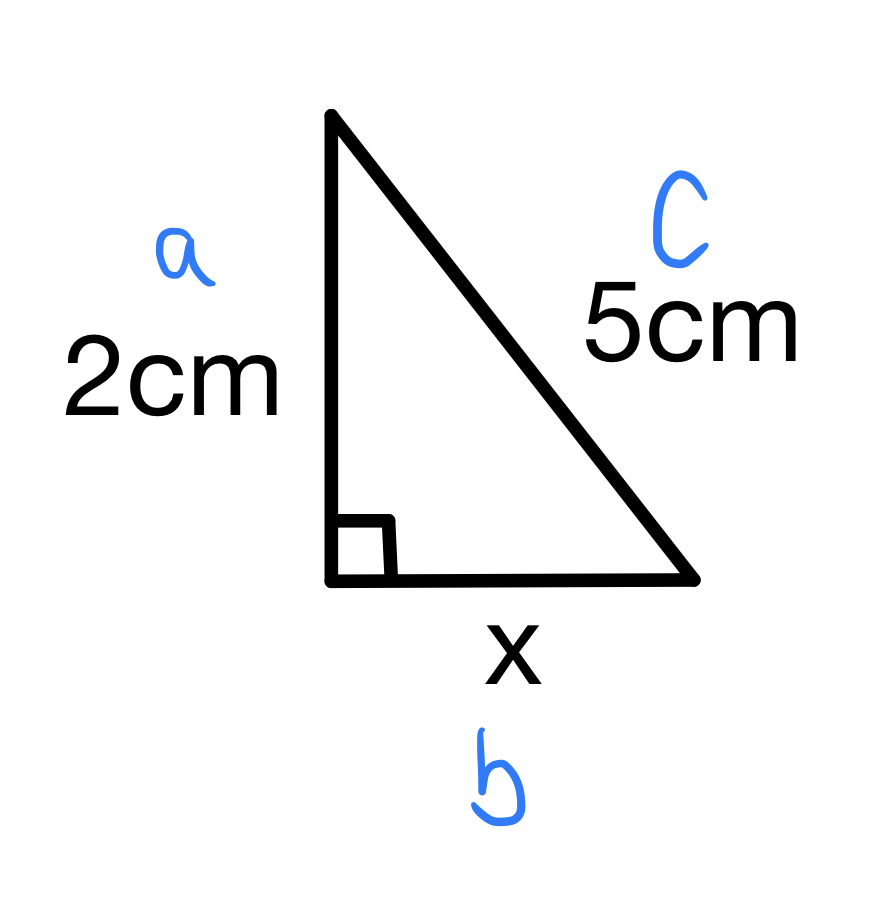

      First, let's label each of the sides a, b and c:

      Pythagoras' theorem, Example finding missing side, Jordan Madge

      Pythagoras- Example Finding Missing Side, Jordan Madge- StudySmarter Originals

      Now, this example is slightly different from the previous as this time we are not finding the hypotenuse, c. Therefore, we have to use a rearranged version of Pythagoras' theorem: b2=c2-a2. Substituting a=2, b=x and c=5 into this formula, we obtain x2=52-22=25-4=21. Thus, we simply need to square root both sides to obtain that x=21=4.58 cm (2.d.p).

      Now, the key thing to note with Pythagoras's theorem is that it only works for right-angled triangles where we are given two sides and wish to find the third side. It doesn't involve any Angles. However, what if we wanted to find a missing angle? What if we were given an angle but not enough sides? This is where trigonometry comes in!

      The purpose of trigonometry is to find missing lengths and Angles. For the time being, we will simply consider trigonometry in right-angled triangles. However, later on in another article, we will consider trigonometry in triangles that are not necessarily right-angled using what is known as the sine and cosine rule.

      Trigonometric Ratios

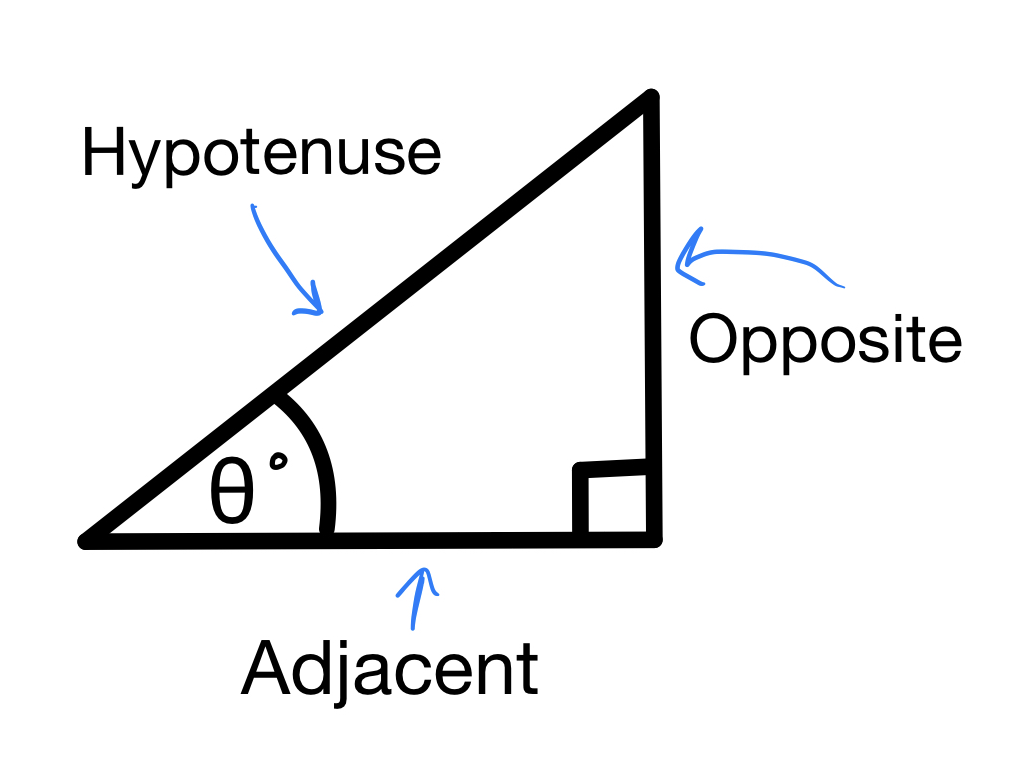

      Trigonometric Ratios, Triangle set up for Trigonometry, Jordan MadgeTrigonometry- Right-angled triangle with Opposite, Hypotenuse and Adjacent sides labelled, Jordan Madge- StudySmarter Originals

      Now, let's dive straight into trigonometry. Like with Pythagoras, we will start by defining our triangle and labelling some key properties. Above depicted in figure 2 is a right-angled triangle with an angle labelled with the Greek symbol theta (θ). For some reason, mathematicians just like using this symbol to denote missing angles. Now, as before with Pythagoras, the hypotenuse is the longest side opposite the right angle. We now introduce two new labels for the other sides: the adjacent side and the opposite side.

      The opposite side of a right-angle triangle is the side opposite the angleθ and we usually label it O. The adjacent side, is the side adjacent (next to) to the angle θ that is not the hypotenuse. We usually label this A.

      Trigonometric Ratios Definition

      Now that we have set up our triangle, we can define our trigonometric ratios. This is where sin, cos and tan come in handy!

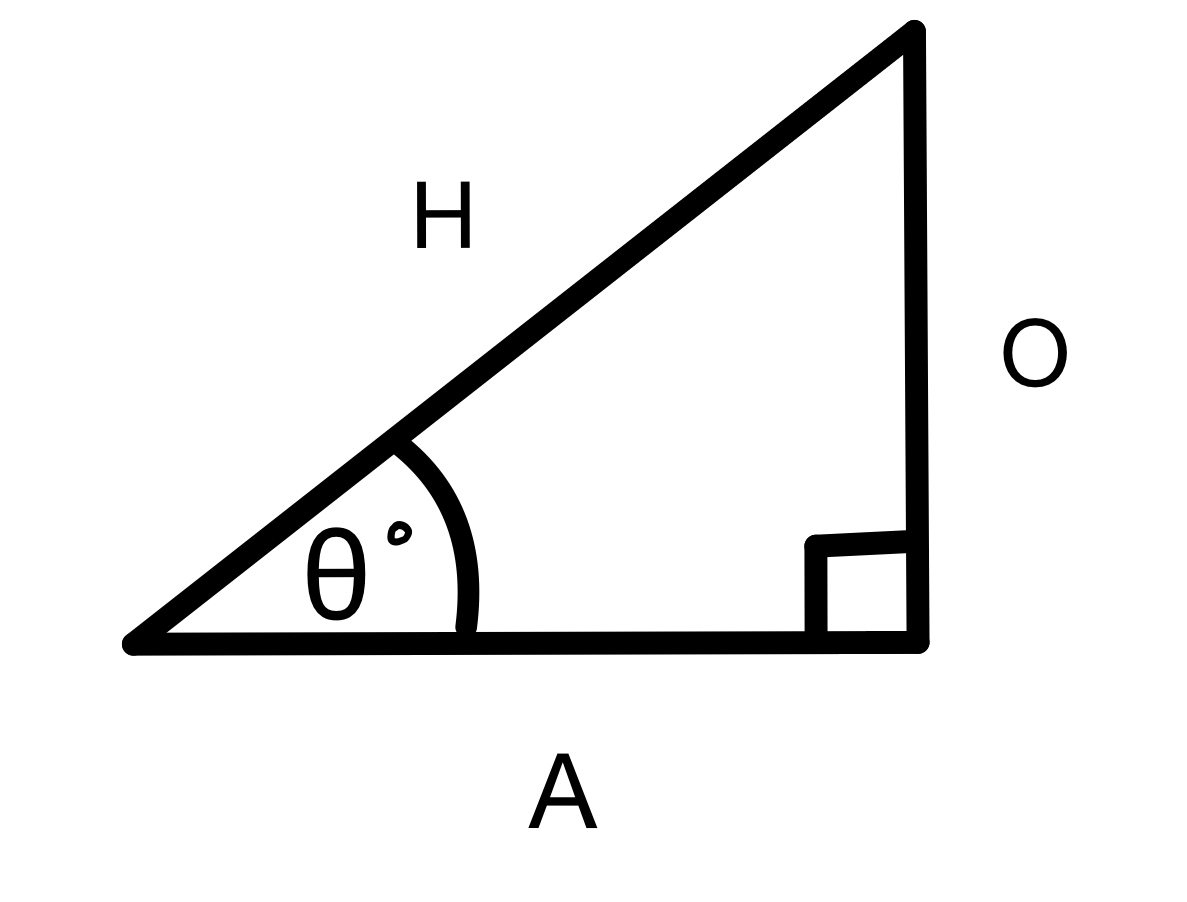

      Trigonometric Ratios, Right Angled Triangle with O, A and H labelled, Jordan MadgeTrigonometry- Right-angled triangle with opposite (O), adjacent (A) and hypotenuse (H) sides labelled, Jordan Madge- StudySmarter Originals

      Trigonometric Ratios Formulas

      Given the right-angled triangle in figure 3 with hypotenuse H, opposite side O and adjacent side A, we have the following ratios:

      sinθ=OHcosθ=AHtanθ=OA

      It may be worth noting at this point that sin is short for sine, cos is short for cosine and tan is short for tangent.

      These ratios can be remembered using the acronym SOHCAHTOA. Although, learning to spell that acronym may be a challenge in itself. Now, at this point, it is okay if you are feeling a little bit lost or confused. It will all become clear in a few short moments. For now, we just need to accept that these ratios exist and that they are very useful.

      Trigonometric Ratios Examples

      Examples Involving Missing Lengths

      So far we have covered all of the tools that you will need to answer questions involving trigonometric ratios. However, to really understand what it all actually means, we must go over some examples. Note, that the purpose of this entire exercise is to find missing lengths or angles. In this section, we will focus on finding missing lengths.

      Steps to find the missing side

      To find the missing side of a right-angled triangle using trigonometry, there are a few steps.

      Step 1: Label the sides O, A and H.

      Step 2: Work out which sides are involved. In other words, which sides do we either know or want to know?

      Step 3: Identify the relevant trigonometric Ratio.

      Step 4: Set up the appropriate equation.

      Step 5: Solve the equation to find the missing side.

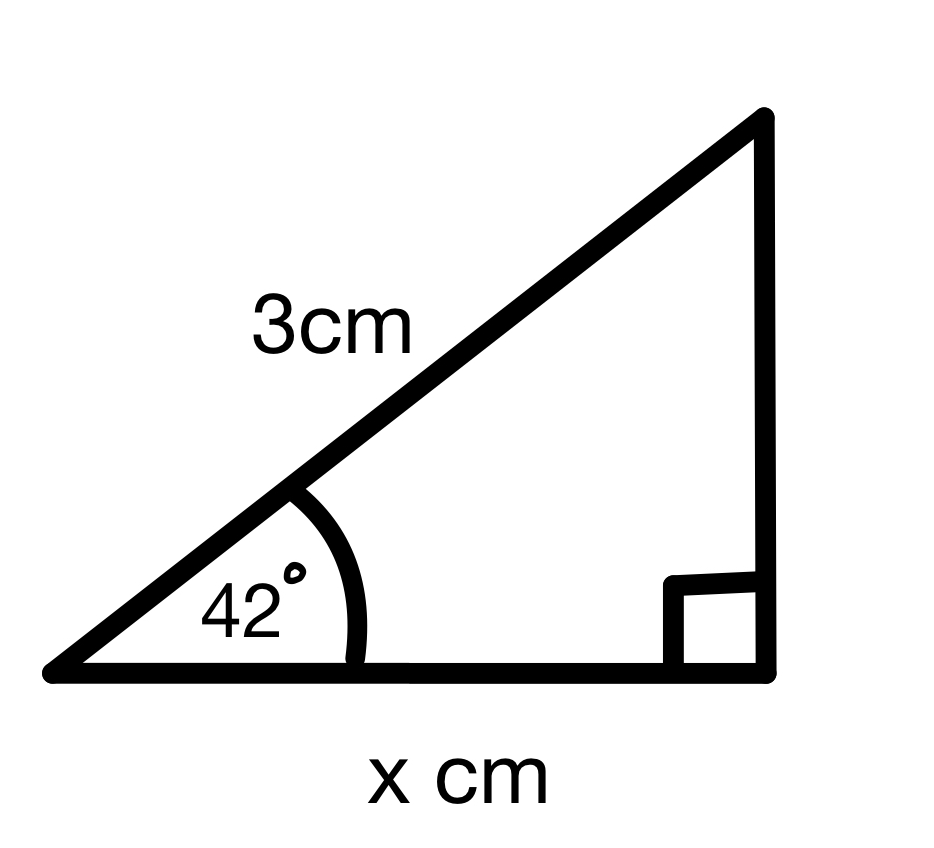

      Suppose we have the below triangle. Find the side labelled x.

      trigonometry, Example finding missing side, Jordan MadgeTrigonometry- Example Finding Missing Side, Jordan Madge- StudySmarter Originals

      Solution:

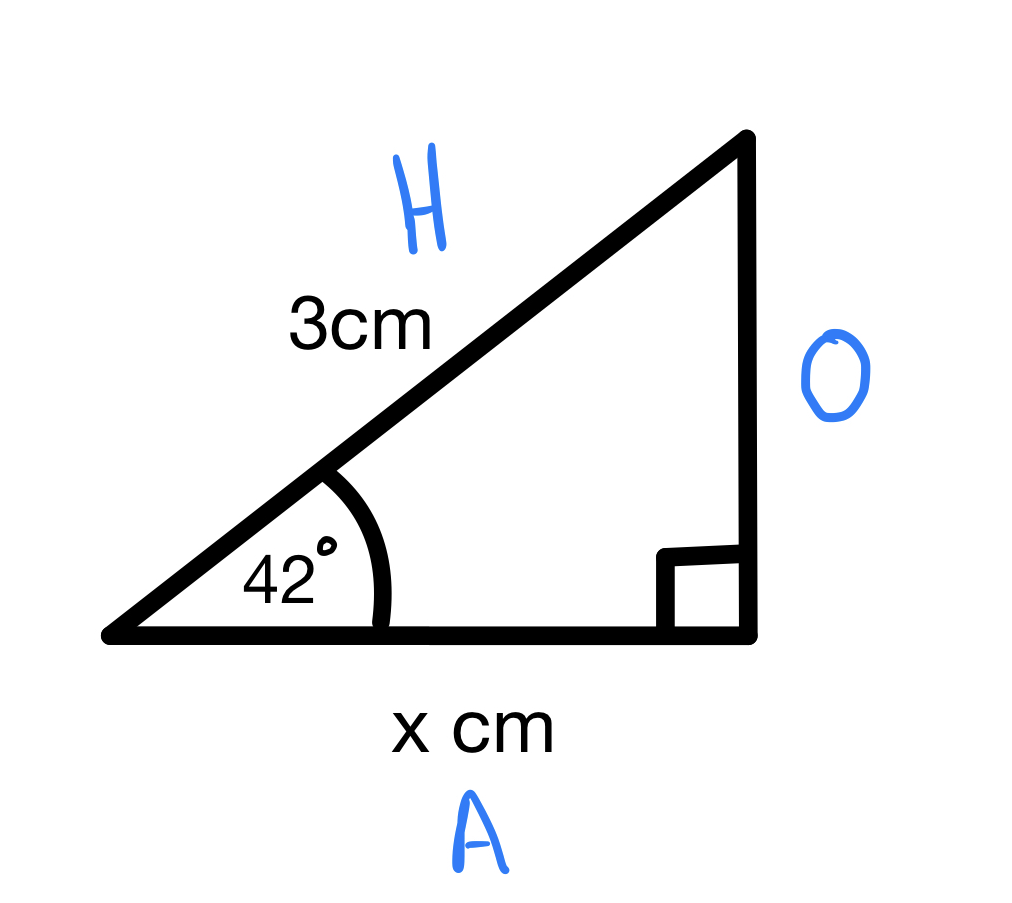

      First, let's label each of the sides O, A and H.

      trigonometry, Example finding missing side, Jordan Madge

      Trigonometry- Example Finding Missing Side, Jordan Madge- StudySmarter Originals

      The next step is to work out which two of the three sides are involved. What we mean by this, is which sides do we know or wish to know. In this example, we know the hypotenuse is 3 cm and we want to know the adjacent side, x cm. Thus, the two sides involved are the adjacent and hypotenuse. Next, we must identify which trigonometric Ratio involves the adjacent and hypotenuse. In this case, it is cos, because cos is the only identity that involved both the adjacent and hypotenuse side. Substituting θ=42, A=x, H=3 into cosθ=AHwe obtain cos42=x3.

      All we have to do now is a bit of rearranging to find x. We can do this by multiplying both sides by 3. Thus,x=3cos42. We get the final answer by typing this into our calculator. So, x= 2.23 cm.

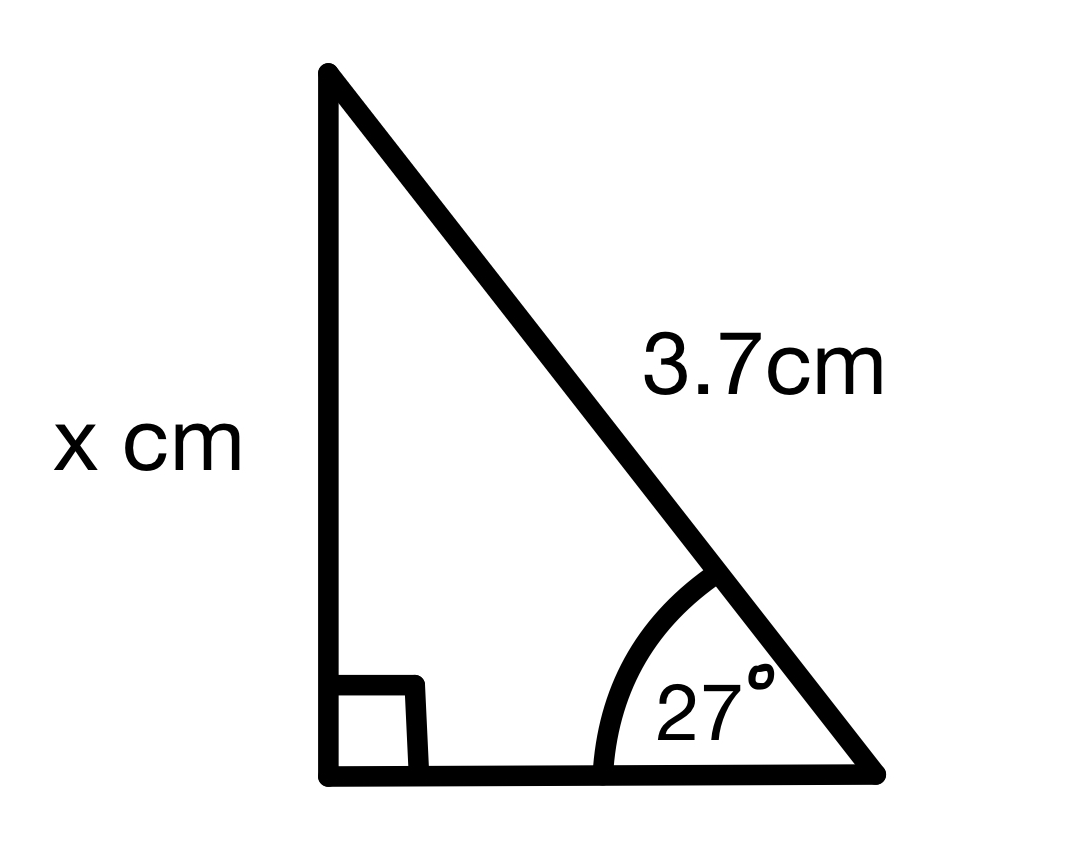

      Suppose we have the below triangle. Find the side labelled x.

      Trigonometry- Example Finding Missing Side, Jordan Madge- StudySmarter Originals

      Solution:

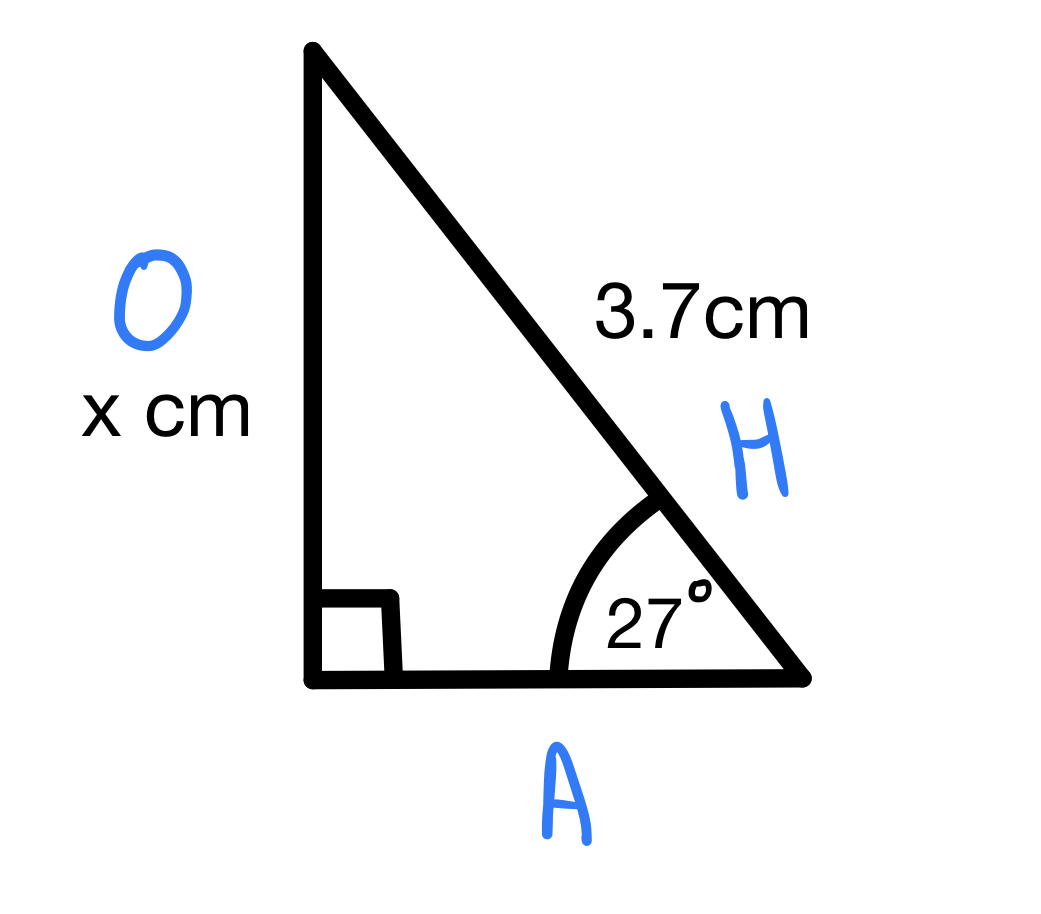

      First, let's label each of the sides O, A and H.

      trigonometry, Example finding missing side, Jordan Madge

      Trigonometry- Example Finding Missing Side, Jordan Madge- StudySmarter Originals

      In this case, we know the hypotenuse, and we wish to know the opposite side. Therefore we use sin since sine is the only trigonometric ratio involving the hypotenuse and opposite side.

      Now, sinθ=OA so sin27=x3.7. Multiplying both sides by 3.7, we get x=3.7 sin(27)which is 1.68 cm (3.s.f).

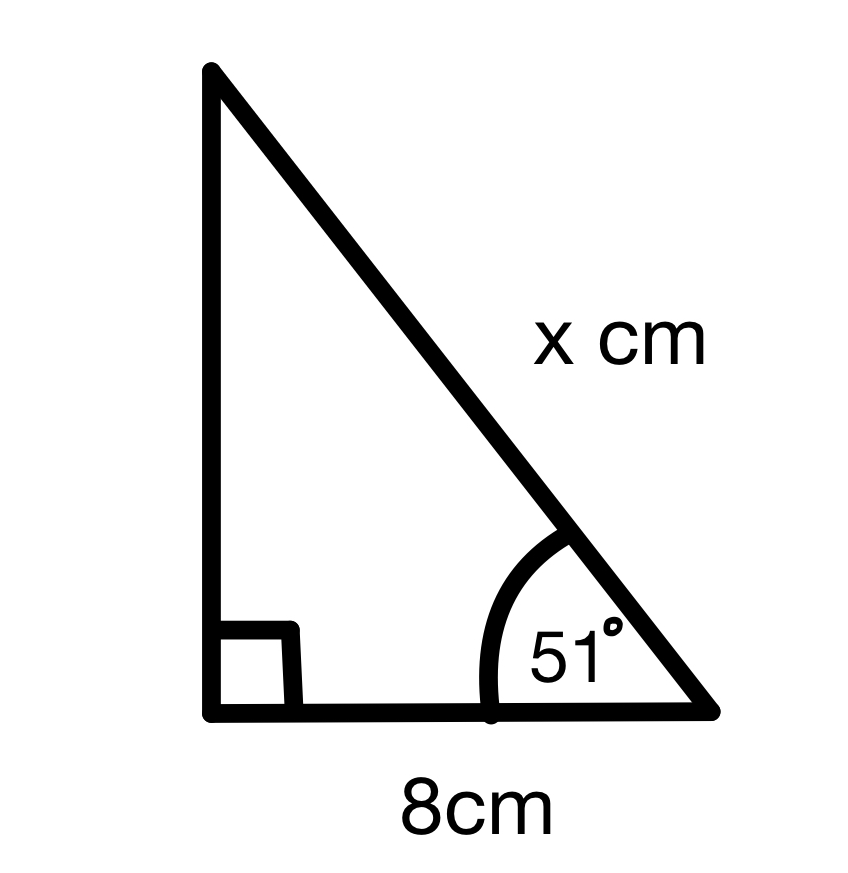

      Suppose we have the below triangle. Find the side labelled x.

      trigonometry, Example finding missing side, Jordan MadgeTrigonometry- Example Finding Missing Side, Jordan Madge- StudySmarter Originals

      Solution:

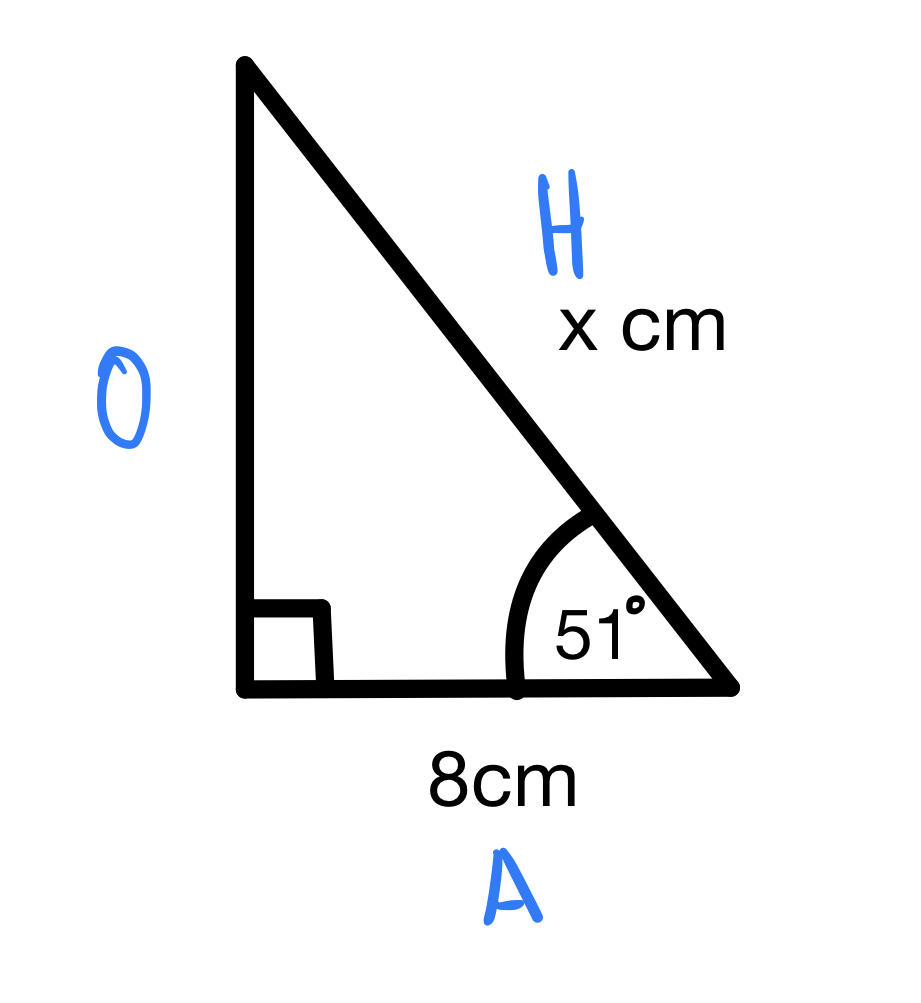

      First, let's label each of the sides O, A and H.

      trigonometry, Example finding missing side, Jordan Madge

      Trigonometry- Example Finding Missing Side, Jordan Madge- StudySmarter Originals

      In this case, we know the adjacent side, and we wish to know the hypotenuse. Therefore we use cos.

      Since cos(θ)=AH we have cos(51)=8x.

      Now, to rearrange this, we need to first multiply both sides by x to obtain x cos(51)=8. Then, to find x, we divide both sides by cos(51) to get x=8cos(51)=12.7 cm(3.s.f).

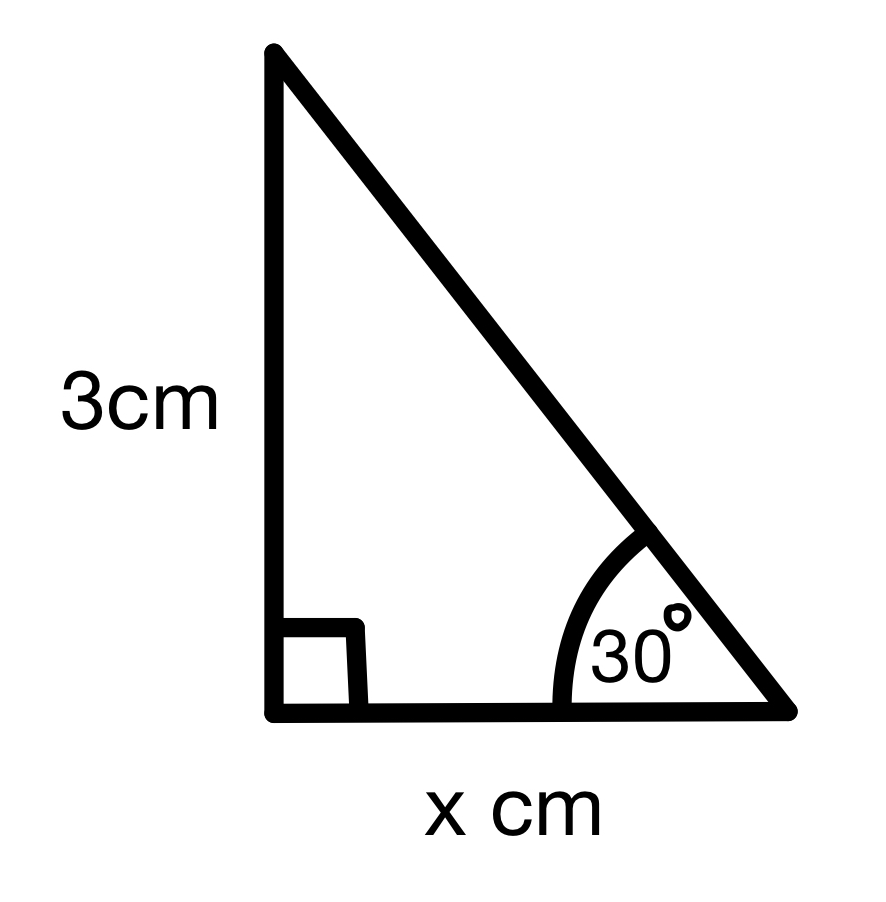

      Suppose we have the below triangle. Find the side labelled x.

      trigonometry, Example finding missing side, Jordan MadgeTrigonometry- Example Finding Missing Side, Jordan Madge- StudySmarter Originals

      Solution:

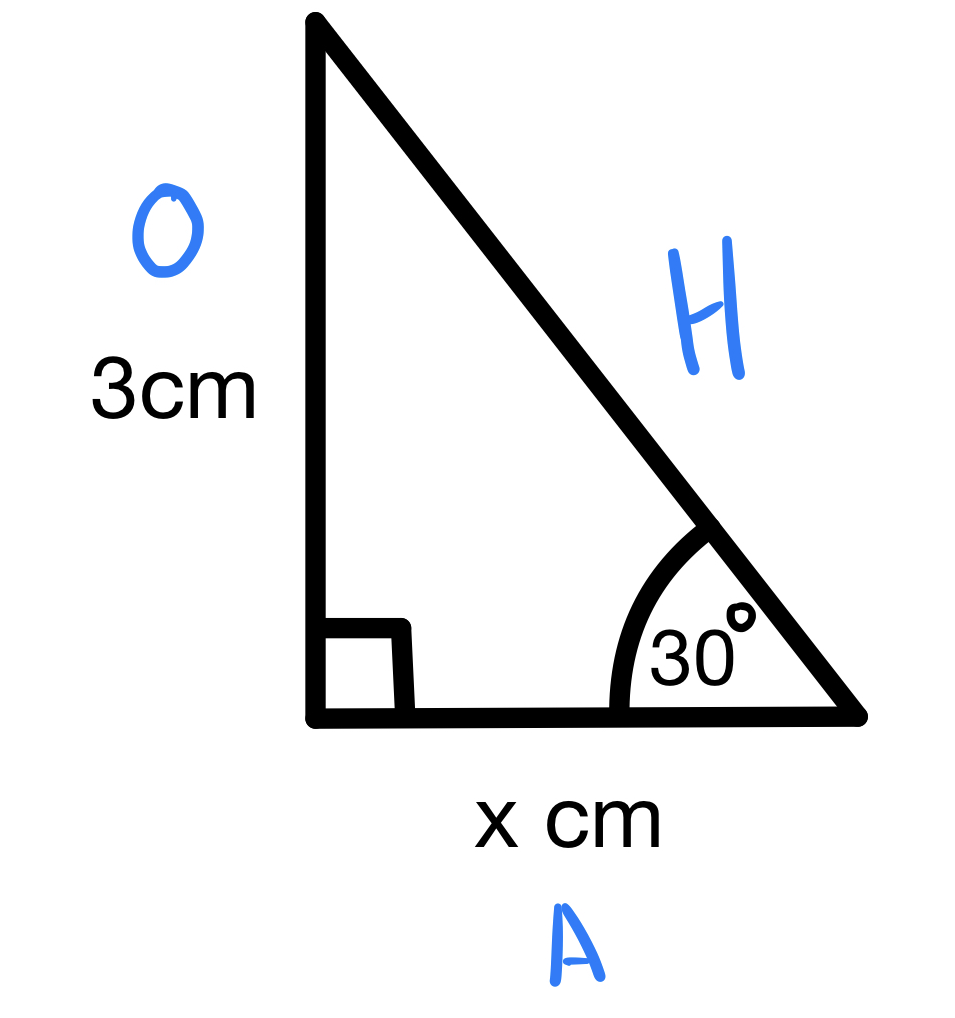

      First, let's label each of the sides O, A and H.

      trigonometry, Example finding missing side, Jordan Madge

      Trigonometry- Example Finding Missing Side, Jordan Madge- StudySmarter Originals

      In this case, we know the opposite side, and we wish to know the adjacent side. Therefore we use tan.

      Since tan(θ)=OA we have that tan(30)=3x. Multiplying both sides by x, we have xtan(30)=3. Dividing both sides bytan(30) we get x=3tan(30)=5.20 cm (3.s.f).

      Examples Involving Missing Angles

      Inverse Trig Functions

      To find missing angles using trigonometry, the steps are very similar to before. However we need to use inverse Trigonometric Functions. On your calculator, you may see sin-1, cos-1, tan-1 above each of sin, cos and tan. You can find them by pressing the shift button and then the relevant trig function.

      Using your calculator, find sin-1(0.1), cos-1(0.1) and tan-1(0.1).

      Solution:

      sin-1(0.1)=shift + sin(0.1)=5.74° (3.s.f)

      cos-1(0.1)= shift + cos(0.1)=84.3° (3.s.f)

      tan-1(0.1)= shift + tan(0.1)=5.71° (3.s.f)

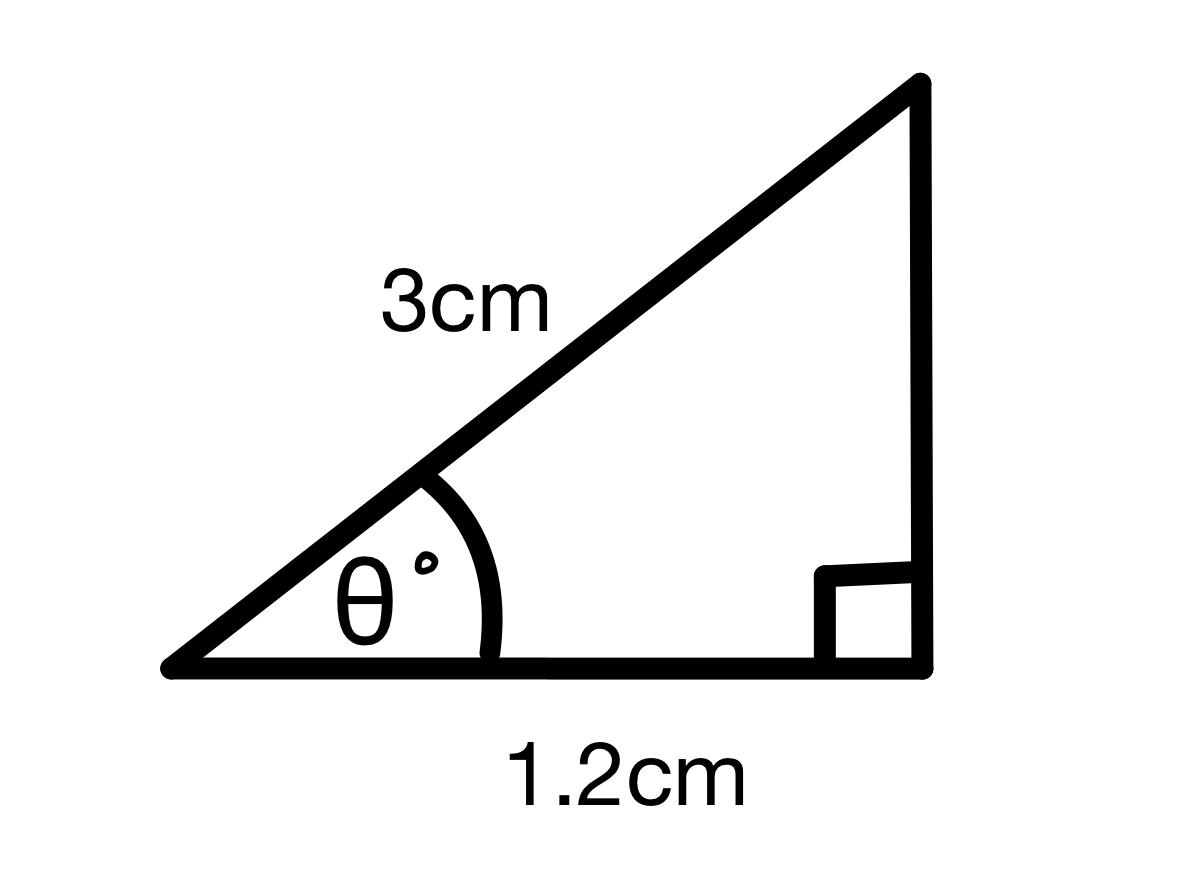

      Suppose we have the below triangle. Find the angle labelled θ.

      trigonometry, Example finding missing angle, Jordan MadgeTrigonometry- Example Finding Missing Angle, Jordan Madge- StudySmarter Originals

      Solution:

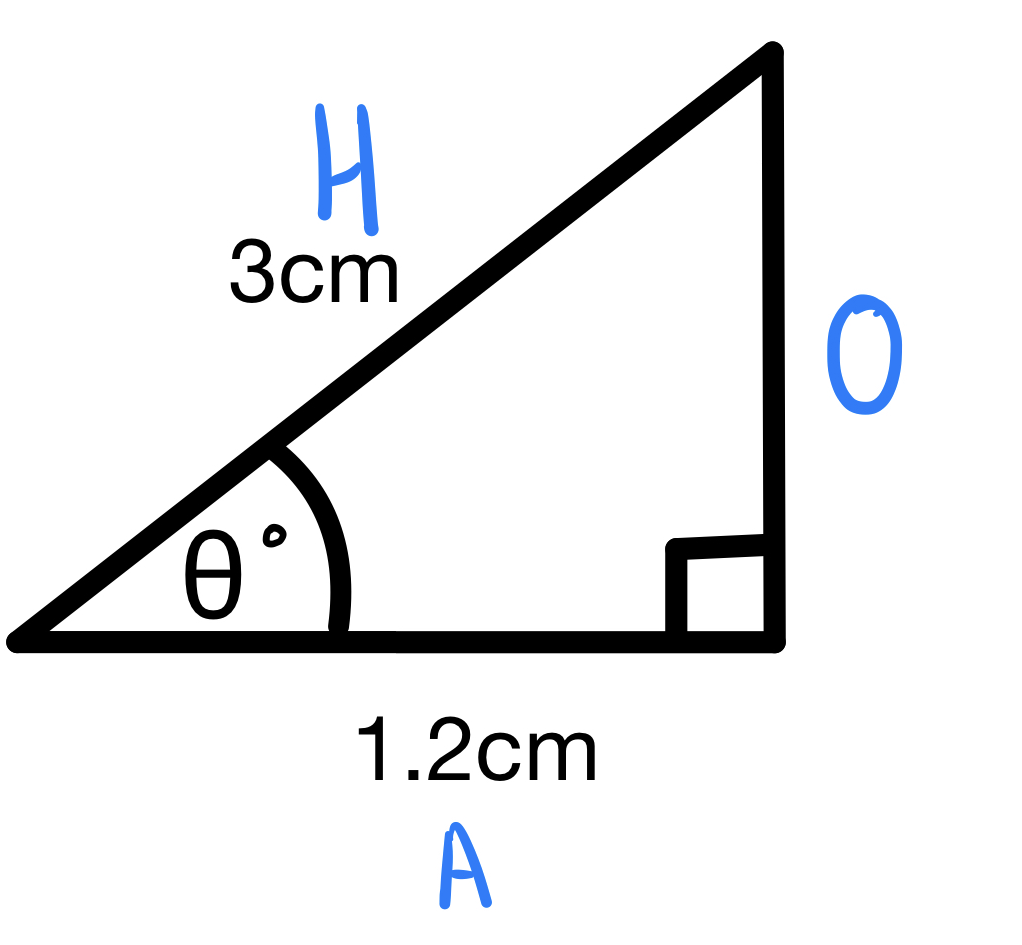

      To find missing angles, the steps are pretty much the same as before. However, there is one minor difference. As before, let's start by labelling each of the sides O, A and H.

      trigonometry, Example finding missing angle, Jordan Madge

      Trigonometry- Example Finding Missing Angle, Jordan Madge- StudySmarter Originals

      Now, we again need to identify which sides are involved. In this case, we know the adjacent and hypotenuse. Since cos involves adjacent and hypotenuse, we use the cosine.

      Sincecos(θ)=AH, we have cos(θ)=1.23.

      Now this time, to get theta by itself, we must take the inverse cosine of both sides.

      Therefore, our answer is θ=cos-11.23=66.4° (3.s.f).

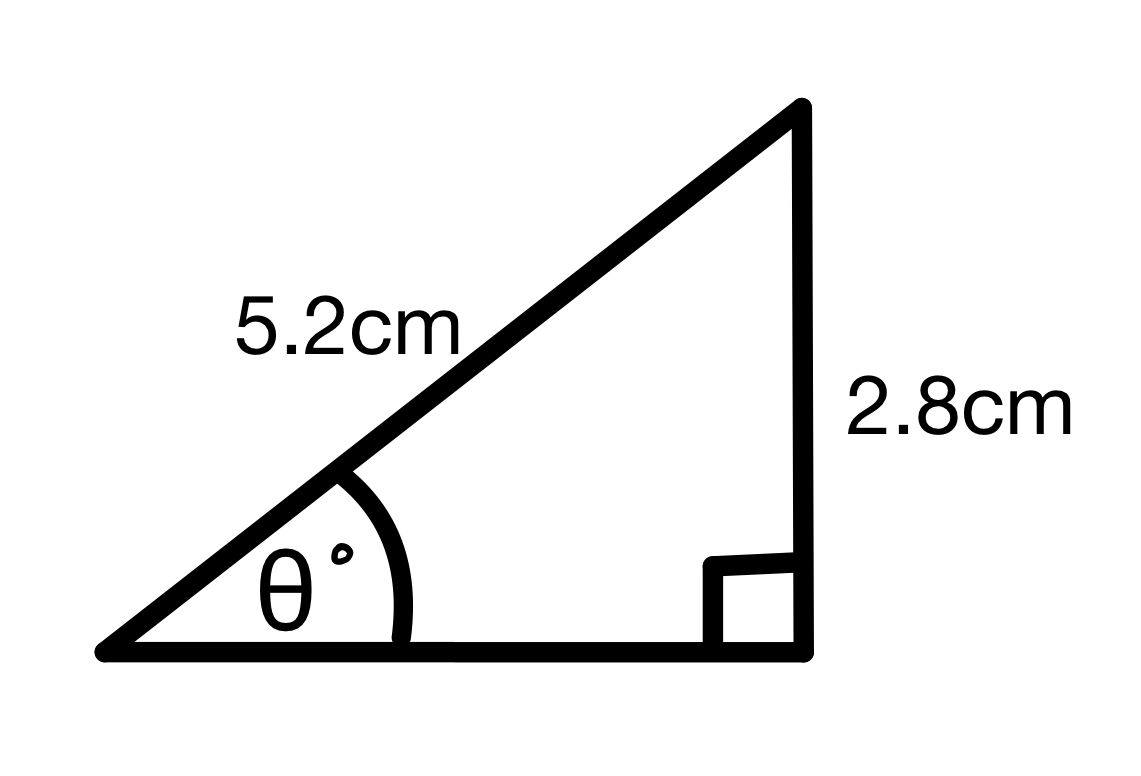

      Suppose we have the below triangle. Find the angle labelled θ.

      trigonometry, Example finding missing angle, Jordan MadgeTrigonometry- Example Finding Missing Angle, Jordan Madge- StudySmarter Originals

      Solution:

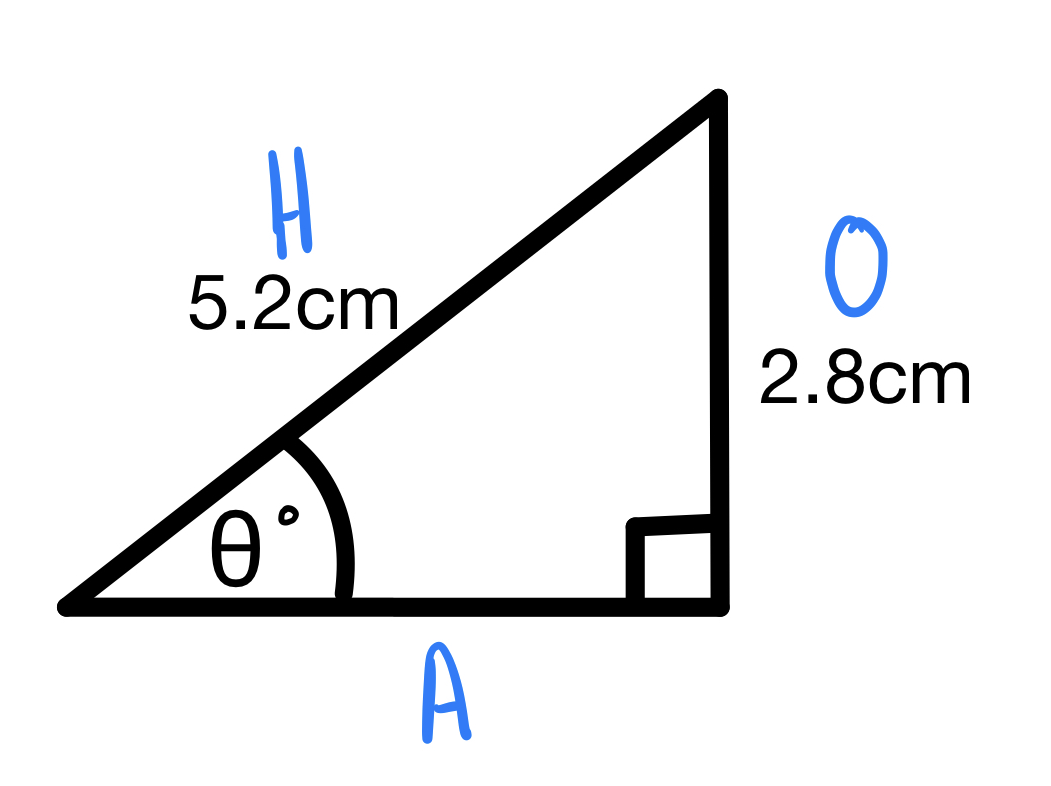

      Labelling the sides, we can see that we have the opposite side and hypotenuse. Therefore we use sine.

      trigonometry, Example finding missing angle, Jordan Madge

      Trigonometry- Example Finding Missing Angle, Jordan Madge- StudySmarter Originals

      Sincesin(θ)=OH, we have sin(θ)=2.85.2

      To get θ by itself, we must take the inverse sine of both sides. Thus, θ=sin-12.85.2=32.6° (3.s.f).

      Trigonometric Ratios Table

      For obvious reasons, trigonometry is a topic usually covered in calculator exams. However, there are some values of sin, cos and tan that you may be expected to know for your GCSE non-calculator exam. It's mean, I know. However, you should try your best to memorise these results.

      Angle(θ)Sin(θ)Cos(θ )Tan( θ)
      30123233
      452222

      1

      6032123

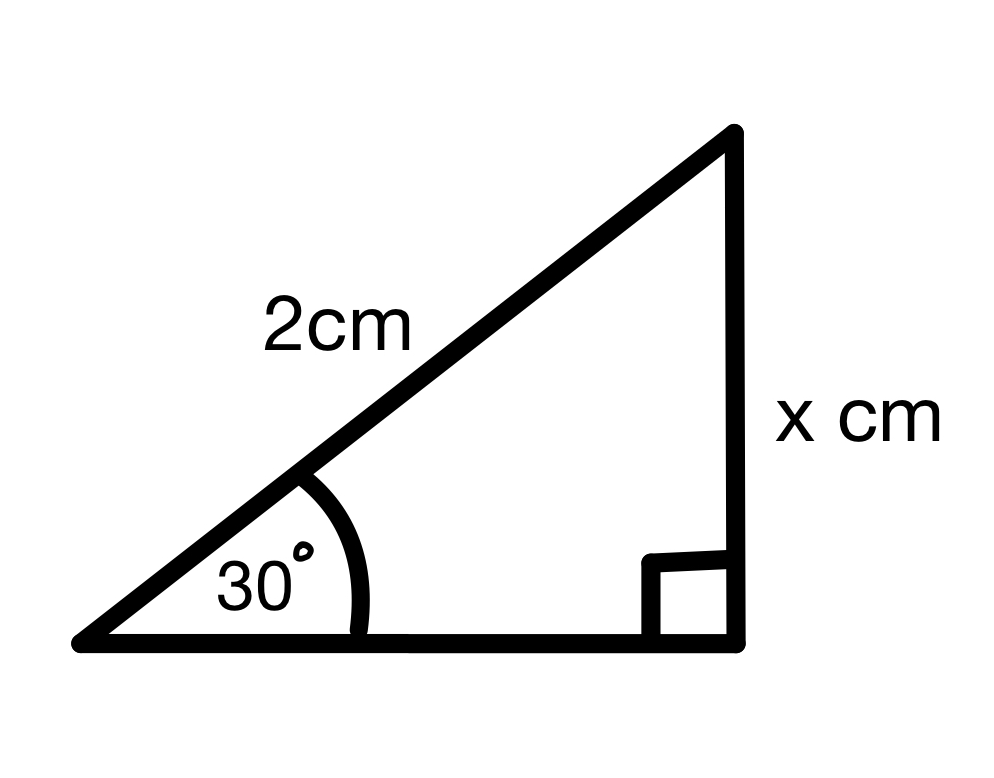

      Suppose we have the below triangle. Find the side labelled x.

      (non-calculator question)

      trigonometry, Example finding missing side, Jordan MadgeTrigonometry- Example Finding Missing Side, Jordan Madge- StudySmarter Originals

      Solution:

      Since we want to know the opposite side and we have the opposite side, we will use sine.

      Since sin(θ)=OH, we have sin(30)=x2.

      Rearranging, we find that x=2sin(30).

      Using table 1, we see that sin(30)=12

      Thus, x=2 ×12=1 cm.

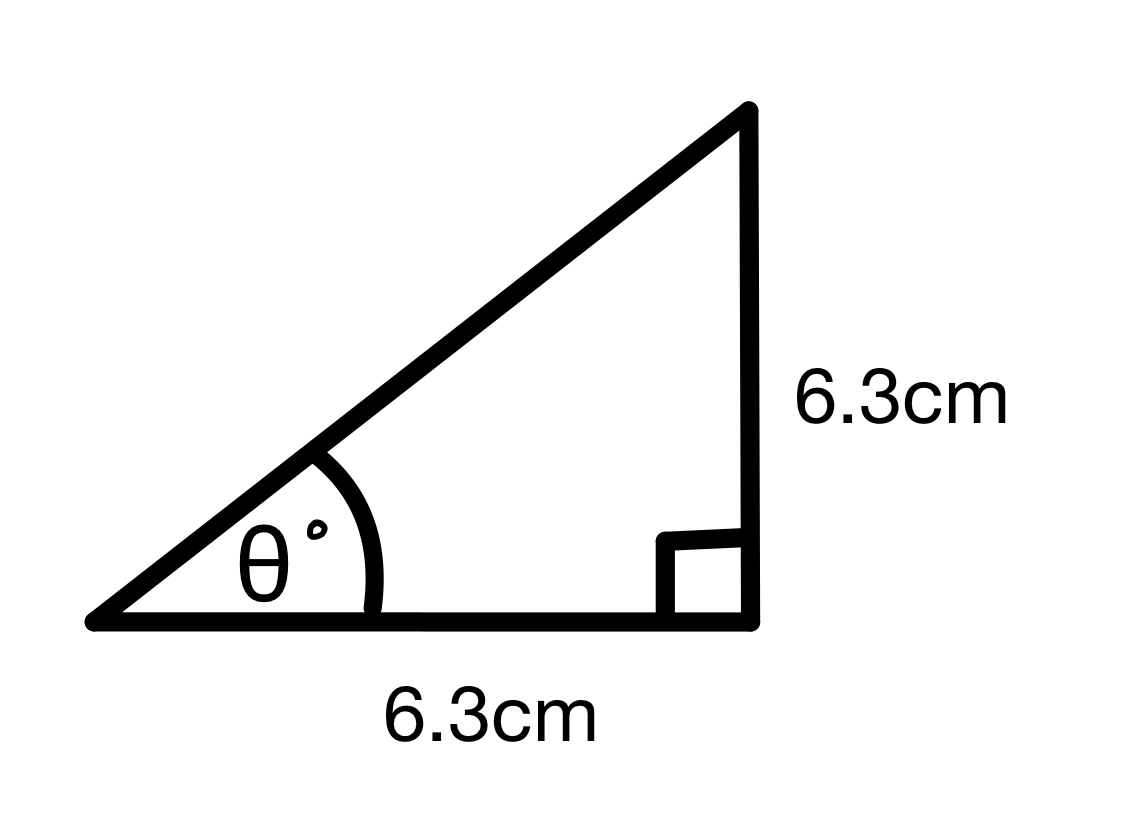

      Suppose we have the below triangle. Find the angle labelled θ.

      (non-calculator question)

      trigonometry, Example finding missing angle, Jordan Madge

      Trigonometry- Example Finding Missing Angle, Jordan Madge- StudySmarter Originals

      Solution:

      Since we have been given both the opposite and adjacent sides, we use tan.

      Since tan(θ)=OA, we have that tan(θ)=6.36.3=1.

      To get θ by itself, we must take the inverse tan of both sides.

      Thus, θ=tan-1(1)

      Using table 1, we see that tan(45)=1 and thus θ=45°.

      Trigonometric Ratios - Key takeaways

      • Trigonometric ratios are used when finding missing sides and angles in right angled triangles.
      • Trigonometry differs to Pythagoras as it involves angles.
      • We can use the acronym SOHCAHTOA to remember the trigonometric ratios.
      • For a given right angled triangle, we can label the hypotenuse and opposite and adjacent sides.
      • The Greek letter θ is often used to denote angles.
      • We can use inverse trig Functions to find angles.

      Trigonometric Ratios Trigonometric Ratios
      Learn with 0 Trigonometric Ratios flashcards in the free StudySmarter app

      We have 14,000 flashcards about Dynamic Landscapes.

      Sign up with Email

      Already have an account? Log in

      Frequently Asked Questions about Trigonometric Ratios

      What are trigonometric ratios?

      Trigonometric ratios are the ratios that we can use to help find missing sides or angles of a right angled triangle.

      What are the 3 main trigonometric ratios?

      Sine, cosine and tangent are the names of the three trigonometric ratios. They can be remembered using the acronym SOHCAHTOA, where Sin(x)=O/H, Cos(x)=A/H and tan(x)=O/A

      Which trigonometric ratio is calculated by opposite divided by adjacent?

      tan(x)= opposite/ adjacent

      Who invented trigonometric ratios?

      Hipparchus was been credited as "the father of trigonometry", and so one could say that he was the inventor of trigonometric ratios.

      How to find trigonometric ratio of any angle?

      It depends what trigonometric ratio you are trying to find. If you are interested in working out the sine of an angle, you take the side opposite the angle and divide it by the hypotenuse. If you are interested in working out the cosine of an angle, you take the side adjacent to the angle and divide it by the hypotenuse. If you are interested in working out the tangent of an angle, you take the side opposite the angle and divide it by the side adjacent.
