    What is the unit circle?

    The unit circle has a radius of 1, with a centre at the origin (0,0). Therefore the formula for the unit circle isx2+y2=1

    This is then used as a basis in Trigonometry to find trigonometric functions and derive Pythagorean identities.

    Unit Circle StudySmarterThe unit circle

    We can use this circle to work out the sin, cos and tan values for an angle 𝜃 between 0 ° and 360 ° or 0 and 2𝜋 Radians.

    unit circle sin cos tan StudySmarterSin, cos and tan on the unit circle

    What is the unit circle used for?

    For any point on the circumference of the unit circle, the x-coordinate will be its cos value, and the y-coordinate will be the sin value. Therefore, the unit circle can help us find the values of the trigonometric functions sin, cos and tan for certain points. We can draw the unit circle for commonly used Angles to find out their sin and cos values.

    Unit Circle StudySmarterThe unit circle Image: public domain

    The unit circle has four quadrants: the four regions (top right, top left, bottom right, bottom left) in the circle. As you can see, each quadrant has the same sin and cos values, only with the signs changed.

    How to derive sine and cosine from the unit circle

    Let's look at how this is derived. We know that when 𝜃 = 0 ° , sin𝜃 = 0 and cos𝜃 = 1. In our unit circle, an angle of 0 would look like a straight horizontal line:

    Unit Circle StudySmarterThe unit circle for 𝜃 = 0

    Therefore, as sin𝜃 = 0 and cos𝜃 = 1, the x-axis has to correspond to cos𝜃 and the y-axis to sin𝜃. We can verify this for another value. Let's look at 𝜃 = 90 ° or 𝜋 / 2.

    Unit Circle StudySmarterThe unit circle for 𝜃 = 90

    In this case, we have a straight vertical line in the circle. We know that for 𝜃 = 90 ° , sin 𝜃 = 1 and cos 𝜃 = 0. This corresponds to what we found earlier: sin 𝜃 is on the y-axis, and cos 𝜃 is on the x-axis. We can also find tan 𝜃 on the unit circle. The value of tan 𝜃 corresponds to the length of the line that goes from the point on the circumference to the x-axis. Also, remember that tan𝜃 = sin𝜃 / cos𝜃.

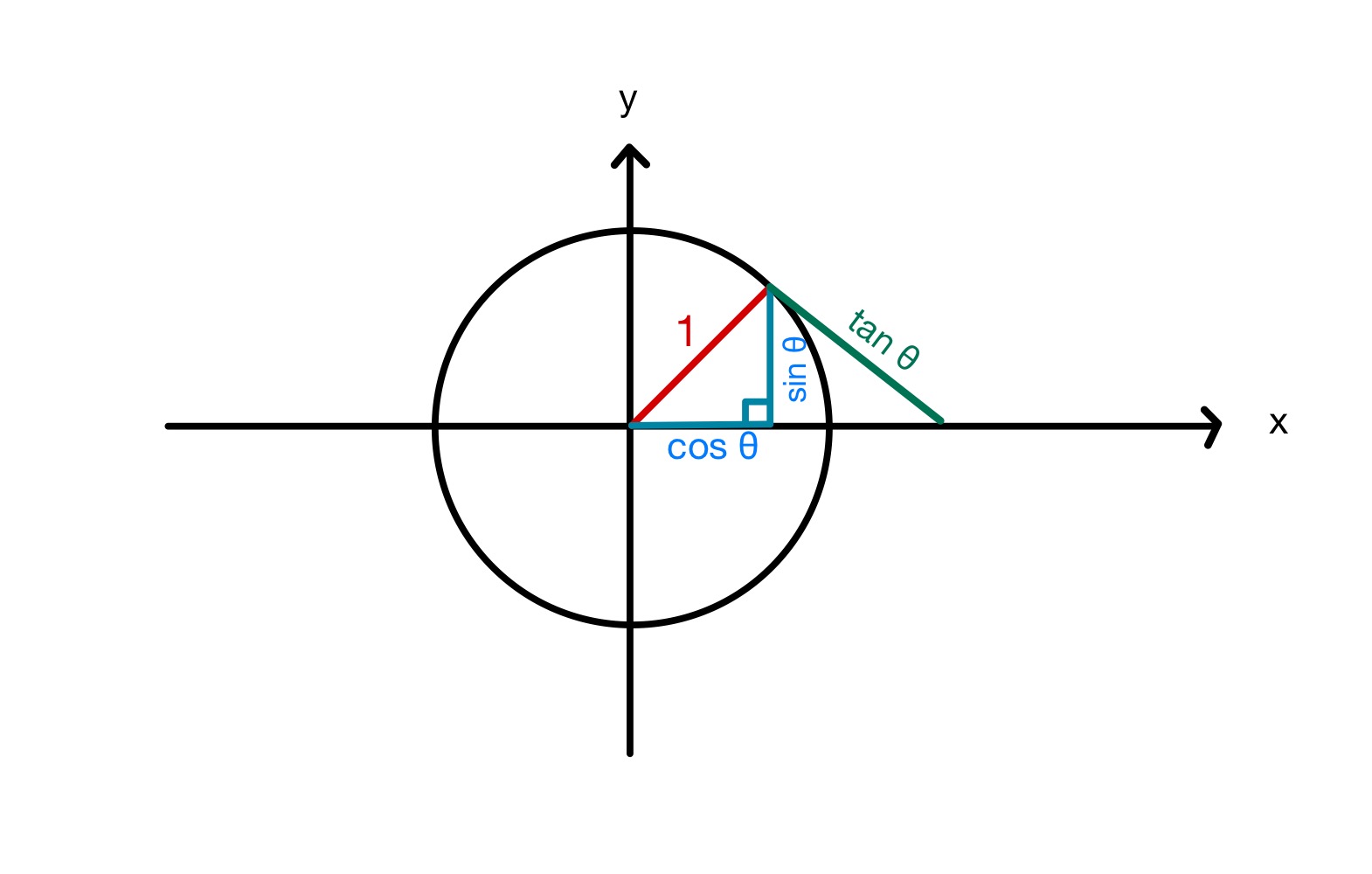

    trigonometry unit circle sin cos tan StudySmarter

    The unit circle for sin, cos and tan

    The unit circle and Pythagorean identity

    From Pythagoras' theorem, we know that for a right-angled triangle a2+b2=c2. If we were to construct a right angled triangle in a unit circle, it would look like this:

    trigonometry unit circle sin and cos StudySmarterThe unit circle with sin and cos

    So a and b are sin𝜃, and cos𝜃 and c is 1. Therefore we can say: sin2𝜃+cos2𝜃=1 which is the first Pythagorean identity.

    Unit Circle - Key takeaways

    • The unit circle has a radius of 1 and a centre at the origin.

    • The formula for the unit circle is x2+y2=1.

    • The unit circle can be used to find sin and cos values for Angles between 0 ° and 360 ° or 0 and 2𝜋 Radians.

    • The x-coordinate of points on the circumference of the unit circle represents the cos value of that angle, and the y-coordinate is the sin value.

    Frequently Asked Questions about Unit Circle

    What is a unit circle?

    A unit circle is a circle with a radius of 1 and a centre at the origin used to find values of and understand trigonometric functions like sin, cos and tan for different angles.

    What is sin and cos on the unit circle?

    Cos is the x-coordinate of a point on the circumference of the circle and sin is its y-coordinate.

    What is the unit circle used for?

    The unit circle is used for finding the values of different trigonometric functions for angles in degrees or radians.
